Tool and die manufacturing services cover everything from progressive stamping dies and custom tooling to CNC machining, EDM, grinding, jigs, and fixtures. In industries where dimensional accuracy directly affects product quality and production consistency, the right manufacturing partner makes a measurable difference. Chaoyang is a precision tool and die manufacturer that supports these requirements end-to-end — from design and engineering through final inspection.
Custom Tool and Die Manufacturing for Precision Production
Chaoyang’s tool and die manufacturing services cover precision dies, custom tooling components, automation parts, and jig and fixture fabrication. Each part is machined to meet tight dimensional requirements, ensuring that tooling performs consistently across production runs.
For manufacturers that depend on accurate, repeatable tooling, this level of precision reduces setup time, minimizes rework, and extends tool life. Chaoyang controls the machining process to meet drawing specifications and functional requirements — whether the application involves stamping die inserts, guide components, or custom precision parts.

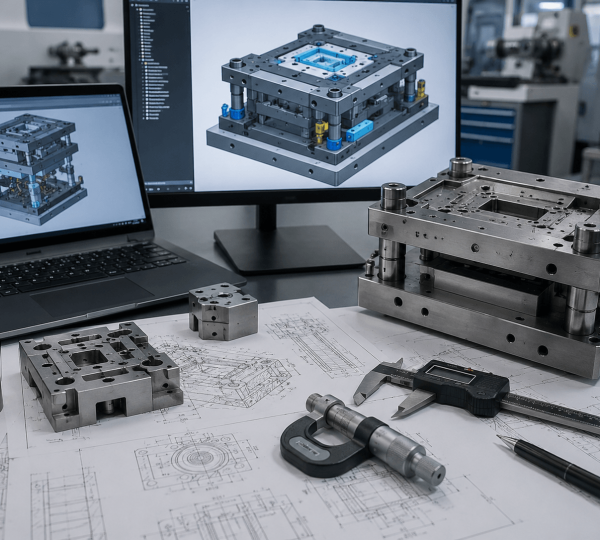

Design and Engineering Support for Custom Tooling
Turning a customer requirement or product concept into a manufacturable tooling solution requires more than machining capability. Chaoyang provides design and engineering support that covers 3D modeling, tooling structure review, and manufacturing feasibility analysis.
This service identifies potential issues before production begins — geometry conflicts, material selection, or tolerance stack-ups. Catching these early reduces costly changes later.For customers who provide drawings or samples, the engineering team reviews the design against machining and assembly requirements to ensure the final tooling meets both dimensional and functional targets.

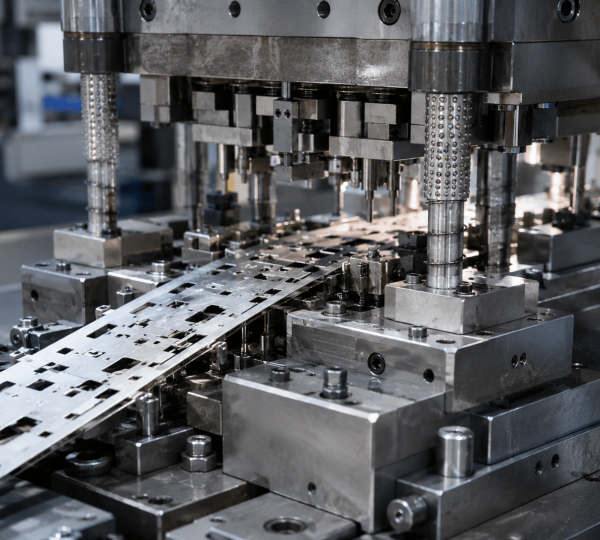

Progressive Stamping Die Services
Progressive stamping dies are used in high-volume, high-speed metal stamping operations where consistent part output and minimal downtime are critical. Chaoyang designs and manufactures progressive stamping dies for a range of industries, including automotive, electronics, communications, aerospace, IC semiconductors, and home appliances.
Each die is engineered for the specific material, strip layout, and production volume of the application. Components are machined to tight tolerances to ensure accurate strip progression, consistent part dimensions, and reliable die performance over extended production cycles.
Machining Capabilities for Die and Tooling Components
Chaoyang’s machining capabilities support complex tooling geometries, tight tolerances, and high surface finish requirements. The available processes include:
- Jig grinding — for high-precision hole positions and bore geometries in hardened tooling components
- Profile grinding — for accurate contour shapes on punches, dies, and forming components
- Surface grinding — for flat, parallel surfaces and consistent part thickness
- Wire cutting (EDM) — for complex profiles, narrow slots, and hard material cutting without mechanical force
- CNC machining — for multi-axis contouring, pocketing, and general precision part production
- Micro EDM — for fine features, small holes, and intricate geometries in miniature tooling components
- Milling and drilling — for general material removal, hole drilling, and component shaping
Together, these processes allow Chaoyang to handle diverse machining requirements — from hardened die steel components to aluminum fixture plates — within a single production environment.
Tool and Die Manufacturing: Tooling, Jigs, and Fixtures
Tooling, jigs, and fixtures are production support components that directly affect assembly accuracy, inspection reliability, and manufacturing efficiency. Chaoyang manufactures custom jigs and fixtures for positioning, clamping, testing, and inspection applications across different production environments.
Accurate jig and fixture design ensures consistent part location across every cycle — critical for repeatability in automated and manual assembly lines. Well-built fixtures also reduce operator error, shorten setup time, and improve inspection accuracy by holding parts in a defined, repeatable position.

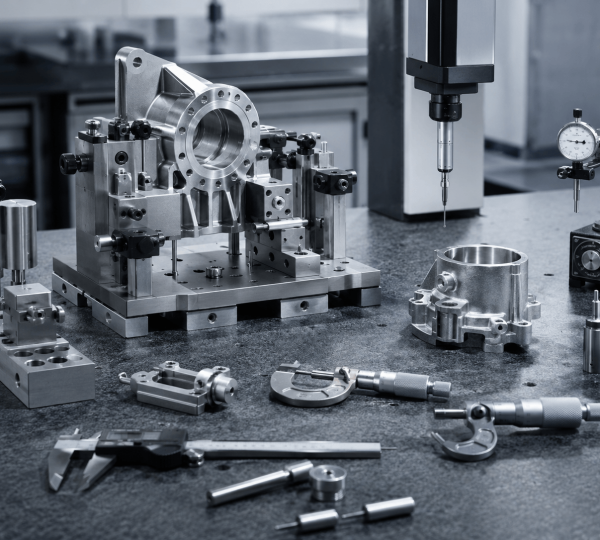

Quality Control for Tool and Die Components
Production follows ISO quality management practices for process control and documentation. Tool and die manufacturing is only as reliable as the quality control process behind it. Chaoyang applies inspection and measurement procedures throughout production to verify that finished parts conform to design specifications and application requirements.
Chaoyang uses calibrated instruments for dimensional verification. Production follows ISO quality management practices for process control and documentation. For customers supplying drawings with critical tolerances or GD&T callouts, inspection results are traceable to the original design requirements. This level of quality assurance reduces the risk of non-conforming parts reaching assembly or production.
Working with a Reliable Tool and Die Manufacturing Partner
Tool and die manufacturing services affect tooling accuracy, production consistency, and long-term manufacturing reliability. From progressive stamping dies and hardened tooling components to CNC-machined fixtures and EDM-cut profiles, each process contributes to the overall performance of the manufacturing system it supports.
An experienced tool and die manufacturer reduces production risk, shortens lead times, and improves part quality control. If your project involves stamping dies, custom tooling, jigs, fixtures, or precision-machined components, Chaoyang has the capabilities and engineering support to deliver to specification.
