AUTOMATION PARTS AND JIGS

What Are Automation Parts & Jigs?

Automation parts are standard motion components such as gears or ball screws. Jigs and fixtures are custom tooling that positions, clamps and supports your workpiece during assembly, inspection or machining. We focus on the custom tooling, designed around your part and the operation it supports.

Custom-built to your workpiece and operation — no off-the-shelf one-size-fits-all.

Custom automation fixture indexing plate

What We Build

Custom assembly fixture frame plate
Custom inspection fixture ring plate
Custom positioning and clamping fixture grid plate

Assembly Fixtures

Hold components in the correct orientation while operators or automated stations fasten, join or fit parts together.

Key Functions
•Component positioning and alignment
•Consistent assembly positioning
•Reduced manual adjustment

Inspection Fixtures

Repeatably position a part so operators or gauges can check critical dimensions, mating features or assembly quality.

Inspection Benefits
•Repeatable part positioning
•Access to critical features
•Reduced setup variation

Positioning & Clamping Jigs

Locate and secure a workpiece during secondary operations such as drilling, tapping, grinding or marking.

Design Considerations
•Stable workpiece positioning
•Secure clamping force
•Clearance for tools

What a Fixture Actually Does

Every custom fixture solves three basic problems:

01

Locate

Pins, pads and datum surfaces put the part in the same position every cycle. Locating accuracy directly controls part-to-part consistency on the production line.

02

Clamp

Holds the part without distorting it, while leaving access for the tool or operator. Clamp force is balanced so thin walls and delicate features do not flex.

03

Support

Backs up thin or flexible features so the part does not move under process forces. Support points are placed directly beneath cutting or load zones.

What We Need to Design Your Fixture

The better these inputs are, the closer the first proposal is to what you need.

□ Workpiece drawing or 3D model
□ Operation the fixture supports
□ Datum / locating surfaces on the part
□ Clamping points and access restrictions
□ Machine or table interface (if applicable)
□ Cycle time or automation requirements

Common Fixture Materials

Material choice depends on stiffness, wear and the forces the fixture sees.

Stainless steel
Alloy steel
Aluminum
Engineered plastics

How We Build Your Fixture

One in-house line covers machining, assembly and final checking.

Machined Components

Fixture plates, locator pins, clamps and brackets machined in-house on CNC and grinding equipment.

Assembly & Tryout

Fixture assembled and checked with your sample workpiece before shipment, where samples are available.

Dimensional Check

Locator positions and critical fixture features measured against the drawing. ISO 9001:2015 certified.

Equipment for Automation Tooling

Fixture plates, bases and locating features are machined and measured with in-house CNC and metrology equipment.

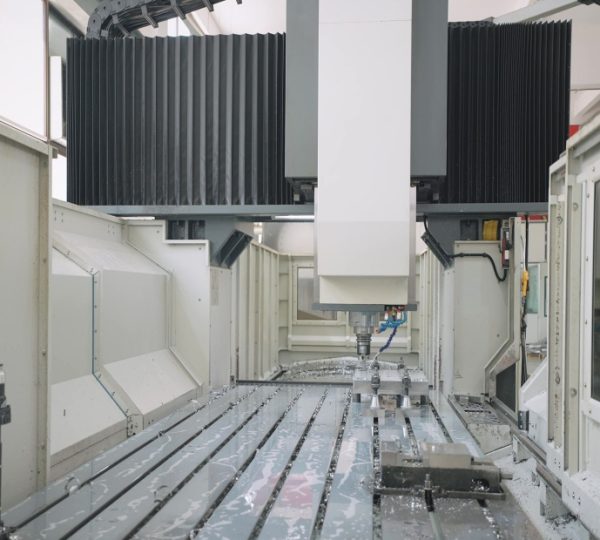

AWEA / AGMA CNC
Medium-format milling, positioning within ±0.005–0.01 mm
VMC-168
Vertical machining for pockets, tapped holes and drilled patterns
DTX850 CNC
Plate milling and precision boring for fixture bases
VLB-121 CNC
Base plates and locating surfaces for larger fixtures
Trimos Height Gauge
Assembly height and step checks on locator stacks
Nikon Height Gauge
Locator positions and parallelism across the fixture
Zeiss CMM
3D geometry of critical locating features
ISO 9001:2015
Certified quality system across fixture machining and inspection
The same CNC machining and metrology that builds our precision stamping dies machines your fixtures and jigs.
See precision dies →

Send Us Your Workpiece

Share the workpiece drawing, describe the operation you need to support, and tell us what equipment the fixture interfaces with. We will review feasibility and come back with questions or a proposed layout.

Workpiece Drawing Operation Type Datum Requirements Machine Interface Sample Workpiece (if available)

Automation Parts & Jigs — Common Questions

Do you assemble and check fixtures before shipment?+
Yes. Fixtures are assembled in-house and checked with your sample workpiece where samples are available. Locator positions and critical features are measured against the drawing before shipment.
Can you design a fixture around a specific workpiece?+
Yes. Most of our fixtures are designed around customer-supplied workpieces. Send the part drawing and describe the operation, and the engineering team will suggest locator positions, clamp points and support surfaces.
What should be considered when integrating a fixture with existing equipment?+
Table mounting holes, available height, actuator interfaces (if automated), and access for operators or tools. Share the machine model or table drawing early, and we will design the fixture base around it.

Have a Fixture Requirement?

Send your workpiece drawing, describe the operation you need supported, and share any machine interface details. We review feasibility and come back with questions or a proposed layout.
