A reliable stamping die manufacturer translates tight tolerances, complex geometries, and tight production schedules into predictable output, rather than scrambling to cope with unexpected situations. Chaoyang employs a system-level approach to die manufacturing: mature machining platforms, an experienced die workshop, and a process control system that integrates design, CAM, and metrology into a repeatable process. Chaoyang’s precision machining capabilities encompass jig grinding, contour grinding, surface grinding, wire EDM, CNC machining, EDM, milling, and drilling, all equipped with well-staffed tool shops and state-of-the-art machinery.
Core Precision Machining Capabilities a Stamping Die Manufacturer Must Master
Jig grinding is one of the most precision-intensive processes in die manufacturing. It directly determines the geometric accuracy of critical components such as punches, inserts, and guide elements. A reliable stamping die manufacturer must be equipped with high-end jig grinding machines capable of achieving micron-level tolerances. At Chaoyang, our Moore jig grinding machines ensure extremely high concentricity and positional accuracy. This technology ensures perfect alignment of die components during assembly, minimizing wear and extending die life. Without advanced jig grinding technology, consistent part quality cannot be guaranteed in high-speed stamping operations.
Contour and Surface Grinding Capabilities of Manufacturers
Complex contours require advanced contour-grinding technology. Professional stamping die manufacturers must possess contour grinding systems capable of handling complex radii, compound curves, and precision angles. Our WASINO contour grinders achieve precise forming, meeting stringent customer specifications. Simultaneously, surface grinding ensures flatness, parallelism, and surface finish—factors crucial in stamping die machining, as a consistent pressure distribution must be maintained on the contact surfaces.
Wire EDM and Electrical Discharge Machining Capabilities of Stamping Die Manufacturers
Electrical Discharge Machining (EDM) plays a central role in modern stamping die machining. Reliable stamping die manufacturers must integrate wire EDM and countersunk EDM technologies to handle complex geometries and hardened materials.
Wire EDM for Contour Precision
Our Seibu waterline EDM machines offer exceptional cutting precision for hardened tool steels. Wire EDM enables the machining of complex internal contours, sharp angles, and high tolerances that are unattainable with conventional machining. The final machined edges are clean and sharp, requiring minimal secondary machining.
Countersunk EDM for Complex Cavities
Our Sodick oil-line EDM machines can machine deep cavities and special shapes with excellent surface finish and dimensional consistency. These machines are essential for producing inserts and formed parts that require extremely high structural integrity. The combination of these EDM capabilities ensures that Asahi can provide advanced stamping dies that meet the complex needs of industry.

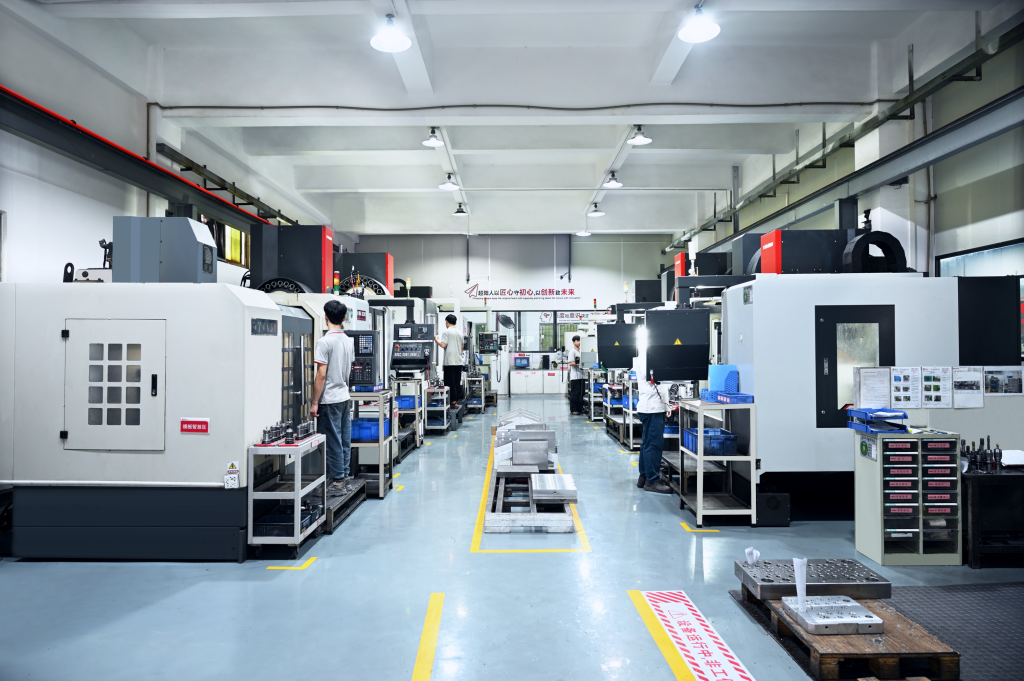

Advanced CNC Facilities for Stamping Die Manufacturer

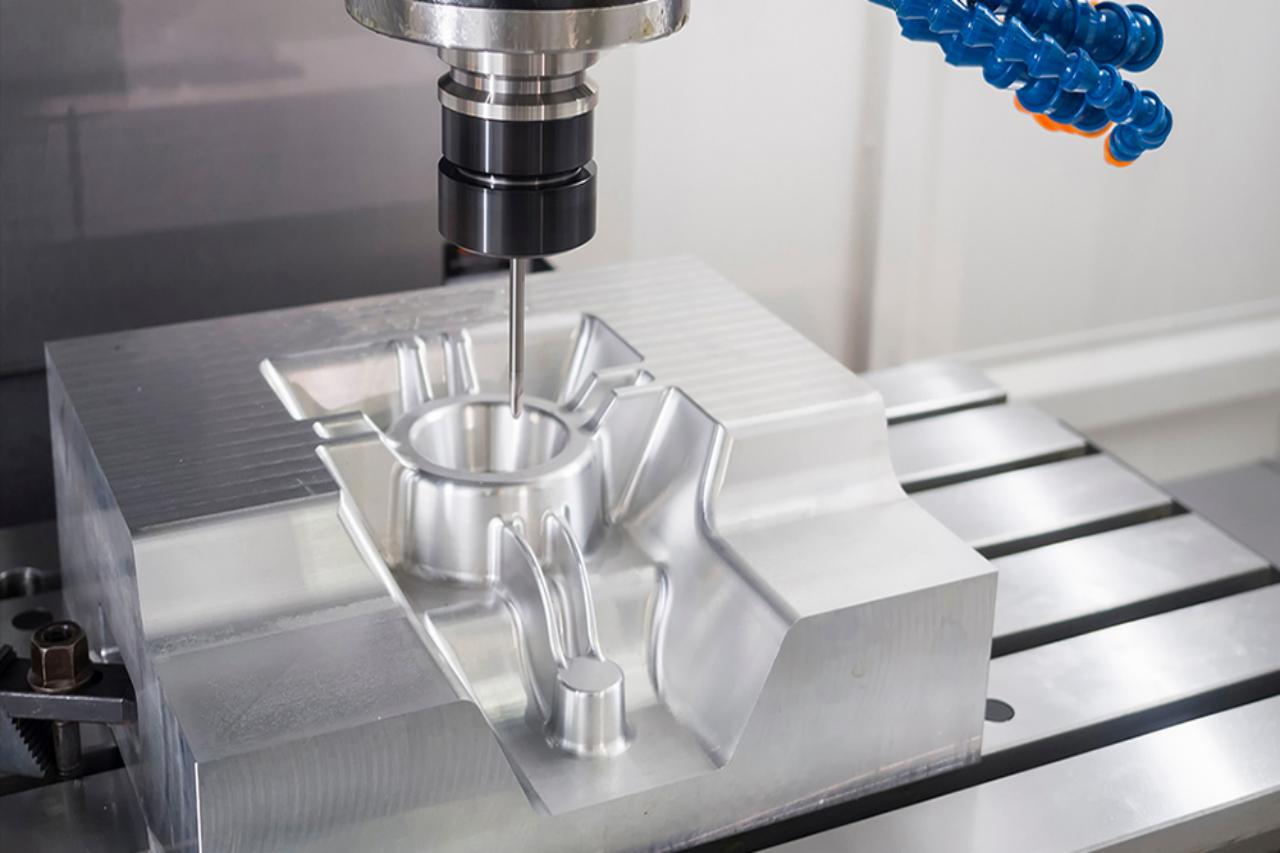

The excellence of precision machining is not just reflected in a single machine. A true stamping die manufacturer must integrate CNC systems, workflow optimization, and quality control into a complete production strategy. CNC machining is the cornerstone of modern die manufacturing. A reliable stamping die manufacturer must operate multi-axis CNC machining centers capable of high-speed, high-rigidity cutting.
At Chaoyang, we utilize AWEA, AGMA, and Vision Wild CNC machining centers manufactured in Taiwan, providing the following services:
- Stable heavy-duty cutting performance
- High spindle accuracy
- Excellent thermal stability
- Efficient multi-faceted machining
These machines are used to machine complex mold frames, templates, and structural components. By performing milling, drilling, and tapping operations within integrated machining centers, we reduce repositioning errors and improve production efficiency.
Milling and Drilling Accuracy
Advanced equipment is important, but fundamental machining techniques such as milling and drilling are also crucial. As a reliable stamping die manufacturer, we ensure:
- Precise hole positioning
- Correct alignment of guide pins and bushings
- Controlled wire quality
- Optimized cutting parameters to extend tool life
During our precision machining processes, we emphasize process specifications and accurate programming. Every stamping die machining project follows proven machining strategies to prevent deformation and maintain dimensional accuracy.
A Fully Equipped Tooling Shop and Production Coordination
Machining capabilities alone do not determine reliability. A comprehensive tooling shop, backed by a highly skilled team of technicians, enables seamless integration across design, machining, and assembly. Our in-house tooling shop ensures immediate feedback between machining and assembly teams, reducing outsourcing delays, implementing quality control at every stage, and achieving shorter delivery times. Chaoyang streamlines workflows and accelerates delivery by integrating processes such as jig grinding, EDM, CNC machining, milling, and drilling into a coordinated system. This vertical integration allows us to maintain consistent product quality while meeting tight production cycles.
Superior Precision Machining Capabilities
A reliable stamping die manufacturer must demonstrate comprehensive die machining capabilities, including jig grinding, contour grinding, surface grinding, wire EDM, EDM forming, CNC machining, milling, and drilling. At our Chaoyang factory, we offer Moore jig grinders, WASINO contour grinders, Seibu water-line EDM machines, Sodick oil-line EDM systems, and Taiwanese-made AWEA, AGMA, and Vision Wild CNC machining centers, forming a complete, integrated production ecosystem. This infrastructure enables us to optimize workflows, shorten delivery times, and maintain uncompromising quality, thus becoming a reliable stamping die manufacturer.
