Manufacturing Capabilities
Our machining services include: jig grinding, profile grinding, surface grinding, wire cutting, CNC machining, EDM, milling, and drilling.
We has a fully staffed toolroom with the state-of-the-art equipment including Moore JG, WASINO PG, Seibu Water-based Wire-EDM, Sodick Oil-based Wire-EDM, AWEA CNC, and so on. This equates to streamlined processes and shorter lead times while upholding the highest standard of quality in each completed part.
Jig Grinding is a specialty grinding process that allows us to grind precision holes, slots, pockets, and contours in tools and components with extremely high precision and accuracy.
True Roundness: ± 0.001mm
Processing Accuracy: ± 0.001mm
Wire EDM refers to a machine or machining process in which a thin wire is used as an electrode to cut through a metallic workpiece. The XY table of the machine moves around a stationary wire. Wire EDM can be used to cut a shaped punch followed by a matching die opening into a die plate, most often for a blanking die or progressive die.
Wire Diameter Range: φ 0.05 ~ 0.3mm
Processing Accuracy: ± 0.001mm
Surface Roughness: Ra0.05, Rz0.1
A high-precision grinding process used to achieve intricate contours and complex geometries in stamping dies. It ensures tight tolerances and smooth surface finishes, critical for maintaining die accuracy and part consistency.
Grinding Precision: ± 0.001mm
Surface Roughness: Ra0.05
This versatile technique uses computer-controlled machinery to precisely remove material from a workpiece according to programmed instructions. It allows for high levels of accuracy, repeatability, and complexity.
Taiwan AWEA CNC machining centers
Maximum Processing Stroke: 1200x600mm
Taiwan AGMA CNC machining centers
Maximum Processing Stroke: 1600x800mm
Taiwan Vision Wild CNC machining center
Maximum Processing Stroke: 1600x3100mm
This uses abrasive particles bonded to a grinding wheel or abrasive belt to remove material from the workpiece surface. It is commonly used for producing cylindrical, flat, and complex-shaped features in hardened tool steel and other hard materials.
Processing Stroke : 600*1200mm
Processing Accuracy: ± 0.001mm
Surface Roughness:Ra 0.02
It focuses on grinding small, flat surfaces or fine features in stamping dies with ultra-high accuracy and exceptional surface quality. It’s ideal for critical functional areas requiring minimal roughness and dimensional stability.
Grinding Precision: ± 0.001mm
Surface Roughness: Ra0.05
Minimum groove: 0.07mm
Best Clearance Angle: R0.01

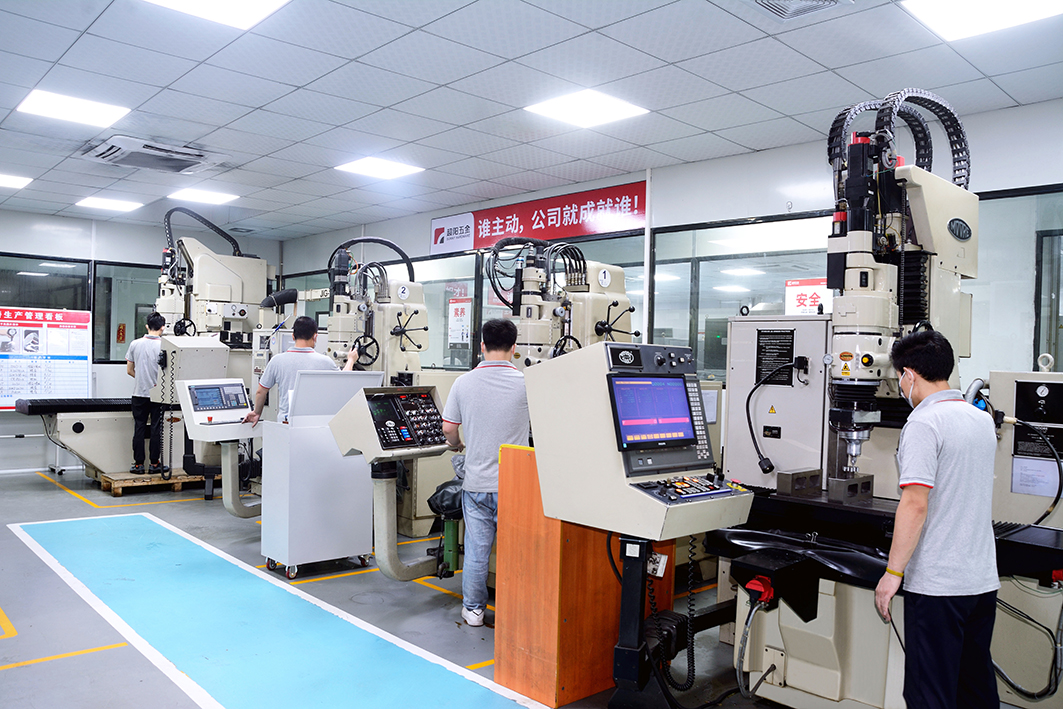

Jig Grinding
Jig Grinding is a specialty grinding process that allows us to grind precision holes, slots, pockets, and contours in tools and components with extremely high precision and accuracy.
True Roundness: ± 0.001mm
Processing Accuracy: ± 0.001mm

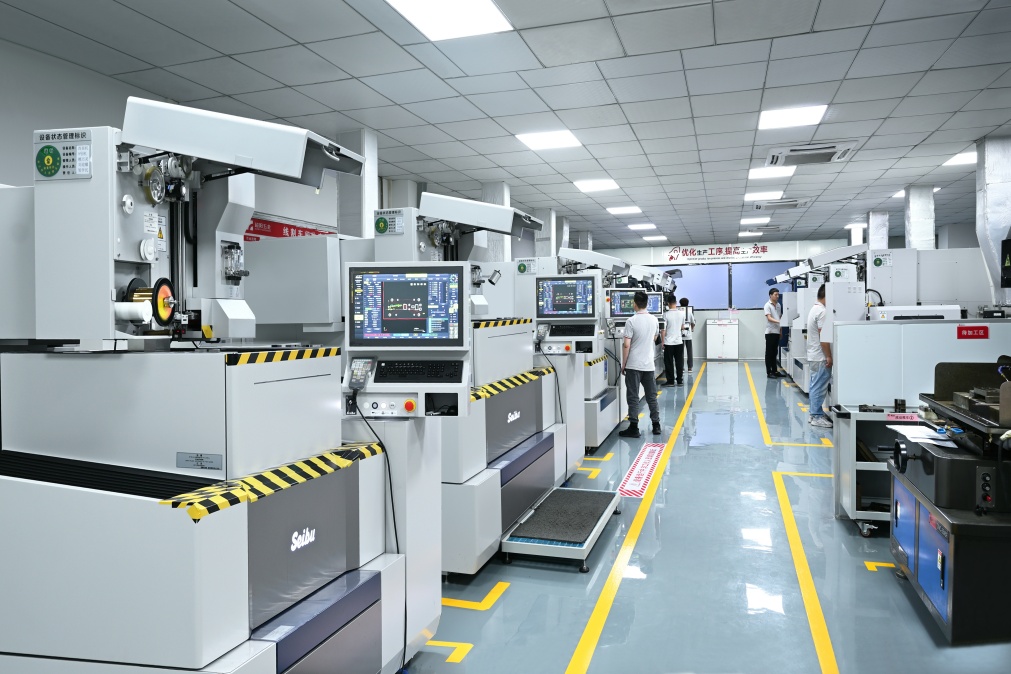

Wire EDM
Wire EDM refers to a machine or machining process in which a thin wire is used as an electrode to cut through a metallic workpiece. The XY table of the machine moves around a stationary wire. Wire EDM can be used to cut a shaped punch followed by a matching die opening into a die plate, most often for a blanking die or progressive die.
Wire Diameter Range: φ 0.05 ~ 0.3mm
Processing Accuracy: ± 0.001mm
Surface Roughness: Ra0.05, Rz0.1

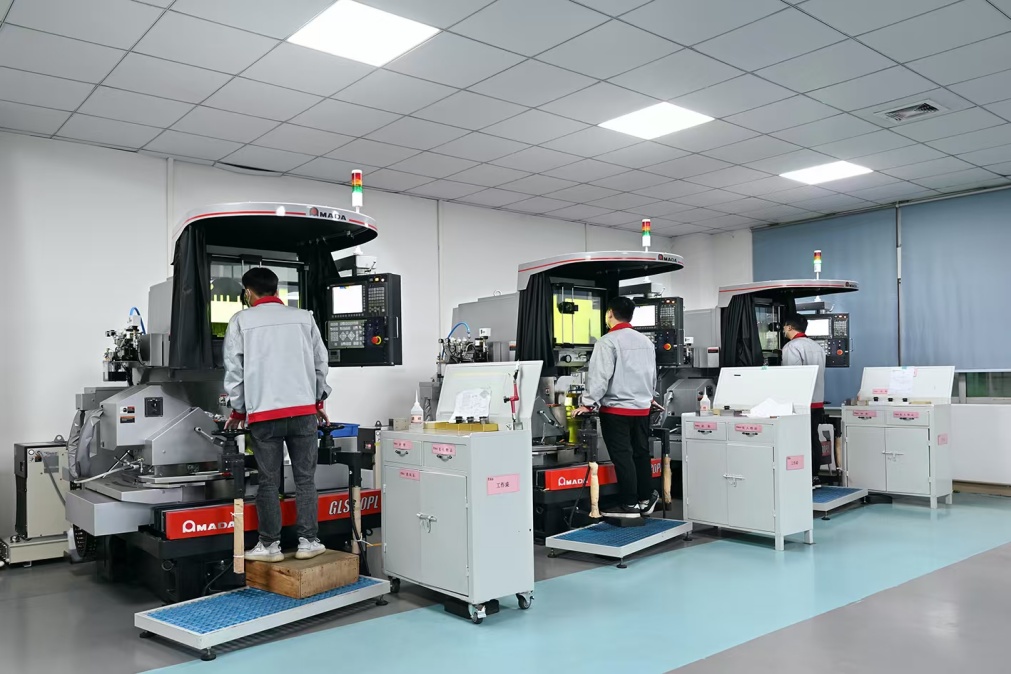

Profile Grinding
A high-precision grinding process is used to achieve intricate contours and complex geometries in stamping dies. It ensures tight tolerances and smooth surface finishes, which are critical for maintaining die accuracy and part consistency.
Grinding Precision: ± 0.001mm
Surface Roughness: Ra0.05

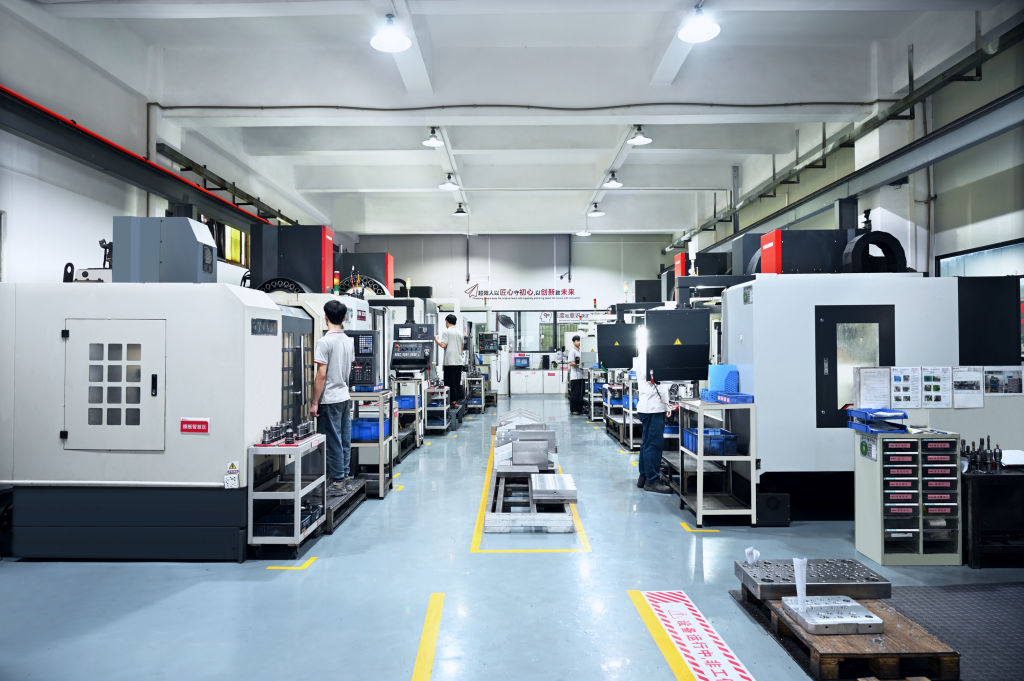

CNC Machining
This versatile technique uses computer-controlled machinery to precisely remove material from a workpiece according to programmed instructions. It allows for high levels of accuracy, repeatability, and complexity.
Taiwan AWEA CNC machining centers
Maximum Processing Stroke: 1200x600mm
Taiwan AGMA CNC machining centers
Maximum Processing Stroke: 1600x800mm
Taiwan Vision Wild CNC machining center
Maximum Processing Stroke: 1600x3100mm

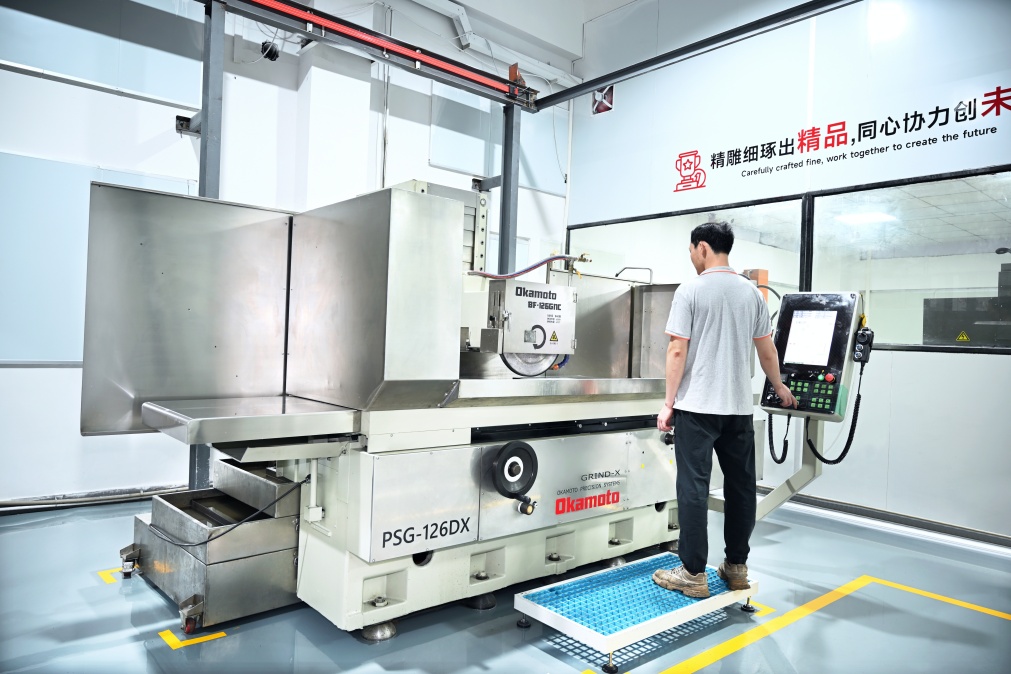

Precision Large Surface Grinding
This uses abrasive particles bonded to a grinding wheel or abrasive belt to remove material from the workpiece surface. It is commonly used for producing cylindrical, flat, and complex-shaped features in hardened tool steel and other hard materials.
Processing Stroke : 600*1200mm
Processing Accuracy: ± 0.001mm
Surface Roughness:Ra0.02

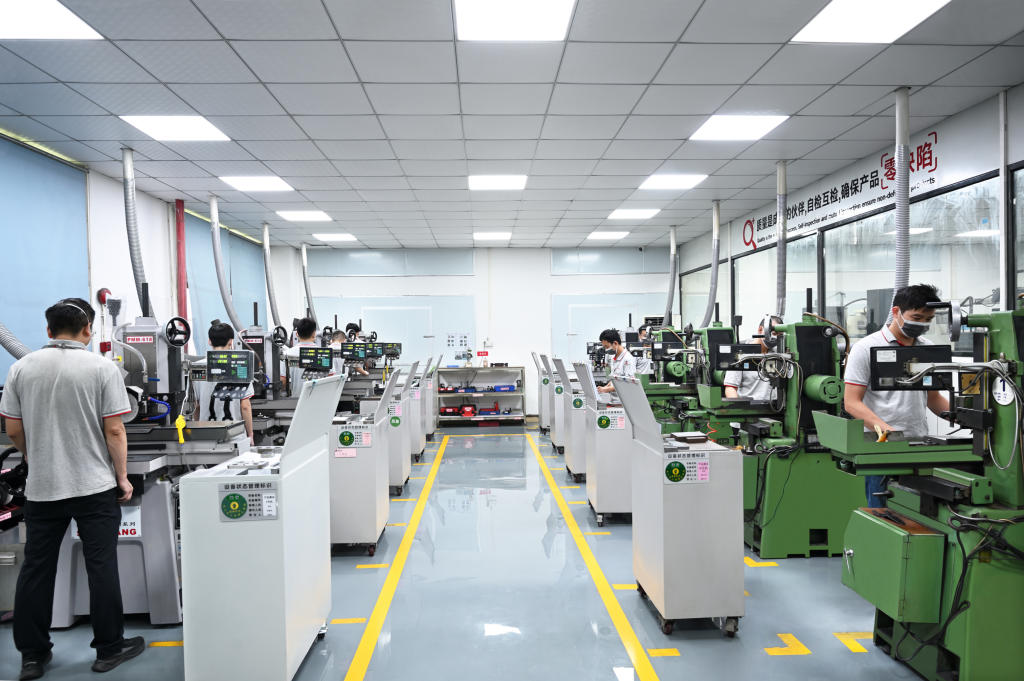

Precision Small Surface Grinding
It focuses on grinding small, flat surfaces or fine features in stamping dies with ultra-high accuracy and exceptional surface quality. It’s ideal for critical functional areas requiring minimal roughness and dimensional stability.
Grinding Precision: ± 0.001mm
Surface Roughness: Ra0.05
Minimum groove: 0.07mm
Best Clearance Angle: R0.01
Make An Appointment
Pellentesque scelerisque auctor scelerisque.
- List of processing equipment for Chaoyang in Dongguan 1
- List of processing equipment for Chaoyang in Dongguan 2
- List of processing equipment for Chaoyang in Nantong 1
- List of processing equipment for Chaoyang in Nantong 2
| Item | Model | Brand/Region | Qty. | Working Stroke(mm) | Accuracy(mm) |
| Jig Grinders (JG) | 1200-CPR | Moore JG/USA | 1 | 600*1200 | ±0.001 |
| 450-CPW | Moore JG/USA | 1 | 280*460 | ±0.001 | |
| G18 | Moore JG/USA | 1 | 270*460 | ±0.001 | |
| Optical Profile Grinders (PG) | GLS-80PL | Amada Wasino/Japan | 3 | 0-80 | ±0.001 |
| Wire Electrical Discharge Maching (Wire EDM) | M50A/B | Seibu/Japan | 4 | 350*500 | ±0.001 |
| M50HP | Seibu/Japan | 2 | 350*500 | ±0.001 | |
| M35B | Seibu/Japan | 2 | 250*350 | ±0.001 | |
| AQ400LS | Sodick/Japan | 2 | 400*300 | ±0.002 | |
| Oil Wire EDM | AP200L | Sodick/Japan | 1 | 200*150 | ±0.001 |
| CNC Machines | YF-106 YF-860 | AWEA/Taiwan | 3 | 600*1000 800*600 | ±0.005 |
| A+1200 | AWEA/Taiwan | 1 | 600*1200 | ±0.005 | |
| VMC-168/VMC-106 | Agmachine/Taiwan | 2 | 1600*800 600*1000 | ±0.01 | |
| DTX850 | Ding Tai/China | 1 | 800*500 | ±0.01 | |
| VLB-121 | Ecom/Taiwan | 1 | 750*1300 | ±0.01 | |
| High-Precision Hydraulic Surface Grinders | FSG-1632AD111 | Chevalier/Taiwan | 1 | 400*800 | ±0.001 |
| FSG-3A1224 | Chevalier/Taiwan | 1 | 300*600 | ±0.001 | |
| 63DX | Okamoto/Japan | 1 | 300*600 | ±0.001 | |
| PSG-126DX | Okamoto/Japan | 1 | 600*1200 | ±0.001 |
| Item | Model | Brand/Region | Qty. | Working Stroke(mm) | Accuracy(mm) |
| Hydraulic Surface Grinders | KGS-84AH | Kent/Taiwan | 1 | 400*800 | ±0.005 |
| KGS-510AH | Kent/Taiwan | 1 | 500*1000 | ±0.005 | |
| KGS-615AH | Kent/Taiwan | 1 | 600*1500 | ±0.005 | |
| Precision Forming Grinders | HF-618S | Hyfair/Taiwan | 7 | 150*400 | ±0.001 |
| SGM-350 | Shu Guang/China | 5 | 150*400 | ±0.001 | |
| PMM-618 | Shu Guang/China | 1 | 150*400 | ±0.001 | |
| PMM-614 | Shu Guang/China | 5 | 150*400 | ±0.001 | |
| Milling Machines | HB-M4/HB-M3 | Hyfair/Taiwan | 2 | 700*300*350 | ±0.01 |
| Side Milling Cutters | 1260 | Ming Hui/China | 1 | 600*1200 | ±0.05 |
| Gantry Milling Machines | 1560 | Ming Hui/China | 1 | 600*1500 | ±0.05 |
| Radial Drilling Machines | HY-900 | Hong Ying(Taiwan) | 1 | 900*900 | / |
| Drill EDM | Z3525 | Zhen Bang/Taiwan | 1 | 0.15-4 | ±0.05 |
| CNC-3545F | Xiu Feng/China | 1 | 0.2-3.0 | ±0.05 | |
| Pneumatic Tapping Machine | 3-12-900 | Hong Ying(Taiwan) | 1 | / | / |
| Laser Marking Machine | SFD-20 | Kai Tai/China | 1 | / | / |
Item | Model | Brand/Region | Qty. | Working Stroke (mm) | Accuracy (mm) |
Optical Profile Grinders (PG) | PGX-2500SP | WAIDA/Japan | 1 | 230x130 | ±0.001 |
SPG-X | WAIDA/Japan | 1 | 300x150 | ±0.001 | |
Jig Grinders (JG) | G48 | Moore/USA | 1 | 600*1200 | ±0.001 |
G18 | Moore/USA | 1 | 460*280 | ±0.001 | |
Wire Electrical Discharge Maching (Wire EDM) | M50B | Seibu/Japan | 2 | 350*500 | ±0.001 |
M50HP | Seibu/Japan | 1 | 300*500 | ±0.001 | |
M35B | Seibu/Japan | 1 | 300*350 | ±0.001 | |
ALN400QS | Sodick/Japan | 2 | 400*300 | ±0.002 | |
Drill EDM | SP-2535 | Ke Teng/China | 1 | 450*270 | ±0.05 |
High-Precision Hydraulic Surface Grinders | FSG-1632AD111 | Chevalier/Taiwan | 1 | 400*800 | ±0.001 |
FSG-1224AD111 | Chevalier/Taiwan | 1 | 300*600 | ±0.001 | |
Hydraulic Surface Grinders | KGS-620AHD | Chevalier/Taiwan | 1 | 600*2000 | ±0.005 |
KGS-510AHD | Chevalier/Taiwan | 1 | 500*1000 | ±0.005 | |
Precision Forming Grinders | SGM-350 | Shu Guang/China | 16 | 150*350 | ±0.001 |
| Item | Model | Brand/Region | Qty. | Working Stroke (mm) | Accuracy (mm) |
| CNC Machines | YF-106 | AWEA/Taiwan | 1 | 1000*600 | ±0.002 |
| SF-3116 | Vision Wide/Taiwan | 1 | 3100*1600 | ±0.005 | |
| DTX850 | Dingtai/China | 1 | 800*500 | ±0.01 | |
| VM850 | Haitian/China | 2 | 800*500 | ±0.005 | |
| Vertical Milling Machine | HX-4M | Xinxu/China | 1 | 400*800 | ±0.05 |
| Radial Drilling Machines | Z3040 | Zhongjie/China | 1 | radius1300 | ±0.05 |
| MS-WEDM | DK7745J | Fangzheng/China | 2 | 500*350 | ±0.01 |
| HS-WEDM | DK7745J | Fangzheng/China | 1 | 650*450 | ±0.02 |
| DK7763J | Fangzheng/China | 1 | 1000*630 | ±0.02 | |
| EDM | ZFC320/30A | Creator/Taiwan | 2 | 300*200*180 | ±0.02 |
| DF-250 | Topedm/Taiwan | 1 | 300*200*180 | ±0.02 | |
| Laser Engraving Machine | KD-SVP2 | Keding/China | 1 | 400*500 | ±0.001 |
| Laser Marking Machine | YLFB-20 | Yuelong/China | 1 | / | / |
